Chrome/bright trim

Around Side WindowsYes

Tyres

Tyre Width205

Tyre Profile50

Tyre Speed RatingV

TypeMud & Snow

Official Brochure Tyre SizeYes

Diameter17

Paint

TypeGloss

Roof rails

ColourChrome/silver

Door mirrors/cameras

TypeElectrically Adjustable

HeatedYes

ColourChrome

Indicator LightsYes

Rear windscreen

TypeFixed

WipersIntermittent

Windscreen wipers

Rain SensorYes

Wheels

Rim TypeAlloy

Rim Diameter (in)17

Rim Width (in)7

Spare wheel

TypeSpace Saver

Rim TypeSteel

External dimensions

Overall Length (mm)4159

Overall Width (mm)1739

Overall Height (mm)1556

Ground Clearance Unladen (mm)165

Wheelbase (mm)2538

Front Track (mm)1477

Rear Track (mm)1488

Kerb To Kerb Turning Circle (mm)10400

Wall To Wall Turning Circle (mm)11200

Overall Length (in)163.7

Overall Width (in)68.5

Overall Height (in)61.3

Ground Clearance Unladen (lbs)6.5

Wheelbase (in)99.9

Front Track (in)58.1

Rear Track (in)58.6

Kerb To Kerb Turning Circle (ft)34.1

Wall To Wall Turning Circle (ft)36.7

Internal dimensions

Headroom Front (mm)898

Headroom Rear (mm)876

Hip Room Front (mm)1360

Hip Room Rear (mm)1337

Leg Room Front (mm)874

Shoulder Room Front (mm)1408

Shoulder Room Rear (mm)1386

Headroom Front (in)35.4

Headroom Rear (in)34.5

Hip Room Front (in)53.5

Hip Room Rear (in)52.6

Leg Room Front (in)34.4

Shoulder Room Front (in)55.4

Shoulder Room Rear (in)54.6

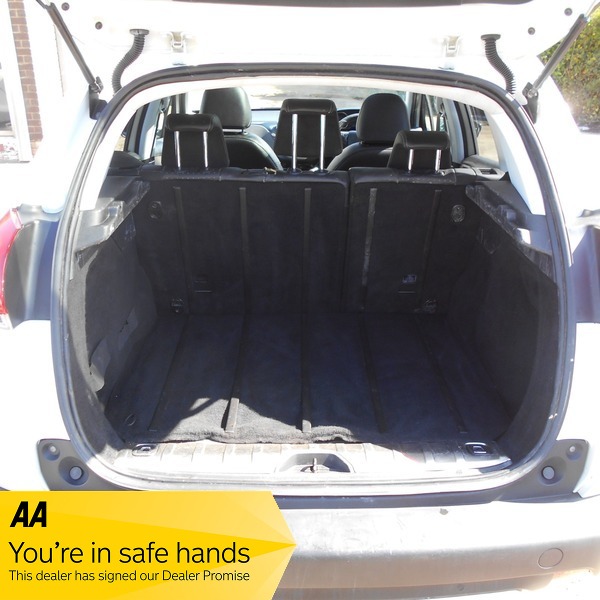

Load compartment capacity

Rear Seat Up To Lower Window (l)350

Rear Seat Down To Roof (l)1194

Measurement StandardVDA

Rear Seat Up To Lower Window (cu Ft)12.4

Rear Seat Down To Roof (cu Ft)42.2

Fuel tanks

TypeMain

Capacity (l)50

Capacity (gal)13.2

Capacity (UK Gallons)11

Weights

Gross Vehicle Weight (kg)1708

Published Kerb Weight (kg)1180

Gross Trailer Weight Braked (kg)1300

Measurement StandardEU

Gross Vehicle Weight (lbs)3766

Published Kerb Weight (lbs)2601

Gross Trailer Weight Braked (lbs)2866

Disc brakes

Number Of4

Number Of Ventilated Discs2

Parking distance sensors

TypeRadar

Headlights

Bulb Type (low Beam)Halogen

Headlight control

Dusk SensorYes

Height AdjustmentManual

Front airbag

Occupant Switch OffYes

IntelligentYes

Head restraints

Height AdjustableYes

Number3

Front seat belts

Seat PositionPassenger

Pre-tensionersYes

Height AdjustableYes

Rear seat belts

Seat PositionCentre

Type3-point

Anti-theft protection

Interior MonitoringYes

Engine

Cc1560

Litres1.6

Bore75

Stroke88.3

Compression Ratio18

Number Of Cylinders4

ConfigurationIn-line

Valve Gear TypeOverhead Cam

Number Of Valves Per Cylinder2

Engine CodeDV6C

Compressor

CompressorTurbo

Emission control level

Standard MetEU5

CO2 Level - G/km Combined105

Fuel system

Injection/carburationDiesel Common Rail

Fuel

Fuel TypeDiesel

Generic Primary Fuel TypeDiesel

Performance

Maximum Speed (km/h)188

Acceleration 0-62mph (s)10.4

Maximum Speed (mph)117

Power

Measurement StandardEEC

Maximum Power KW84

Maximum Power Hp/PS115

Rpm For Maximum Power (low)3600

Maximum Torque Nm270

Rpm For Maximum Torque (low)1750

Primary Or Secondary Fuel Power FigurePrimary

Power steering

Vehicle Speed ProportionalYes

TypeElectric

Suspension

TypeTorsion Beam

Anti-roll BarYes

Wheel DependenceSemi-independent

Spring TypeCoil

Traffic light coding

Efficiency LabelB

Main service

Distance (km)25749

Period (mths)12

Distance (miles)16000

Fuel consumption

StandardECE 99/100

Urban (l/100km)4.7

Country/highway (l/100km)3.6

Combined (l/100km)4

Urban (km/l)21.3

Country/highway (km/l)27.8

Combined (km/l)25

Combined Vehicle Range (km)1250

Combined Vehicle Range (miles)777

Urban (mpg)50

Country/highway (mpg)65

Combined (mpg)59

Urban (miles Per UK Gallon)60

Country/highway (miles Per UK Gallon)79

Combined (miles Per UK Gallon)71

Powertrain type

TypeCombustion
